• Wheels, 18" (45.7 cm) chromed aluminum includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Upgradeable to (PYU) 20" (50.8 cm) polished aluminum wheels.)
• Tires, LT265/70R18E all-season, blackwall (Upgradeable to (QGM) LT265/70R18E all-terrain, blackwall tires or (QFC) LT265/60R20E all-terrain, blackwall tires.)
• Wheel, 18" x 8" (45.7 cm x 20.3 cm) full-size, steel spare. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires 18" or 20" wheels and tires.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Wheelhouse liners, rear (Requires Crew Cab or Double Cab model. Deleted with (ZW9) pickup box delete.)
• Bumper, front chrome
• CornerStep, rear bumper (Requires (E63) pickup box.)
• Bumper, rear chrome with bumper CornerSteps (Requires (E63) pickup box.)
• Moldings, bodyside, chrome
• Grille surround, chrome
• Headlamps, halogen projector-beam
• Lamps, cargo area, cab mounted with switch on center switch bank
• Fog lamps, front, halogen
• Mirrors, outside chrome cap, heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators and puddle lamps (includes driver's side spotter mirror)
• Mirror caps, chrome
• Glass, deep-tinted
• Door handles, chrome
• Tailgate and bed rail protection caps, top
• Tailgate, EZ-Lift and Lower (Deleted with (ZW9) pickup box delete.)
• Remote Locking Tailgate

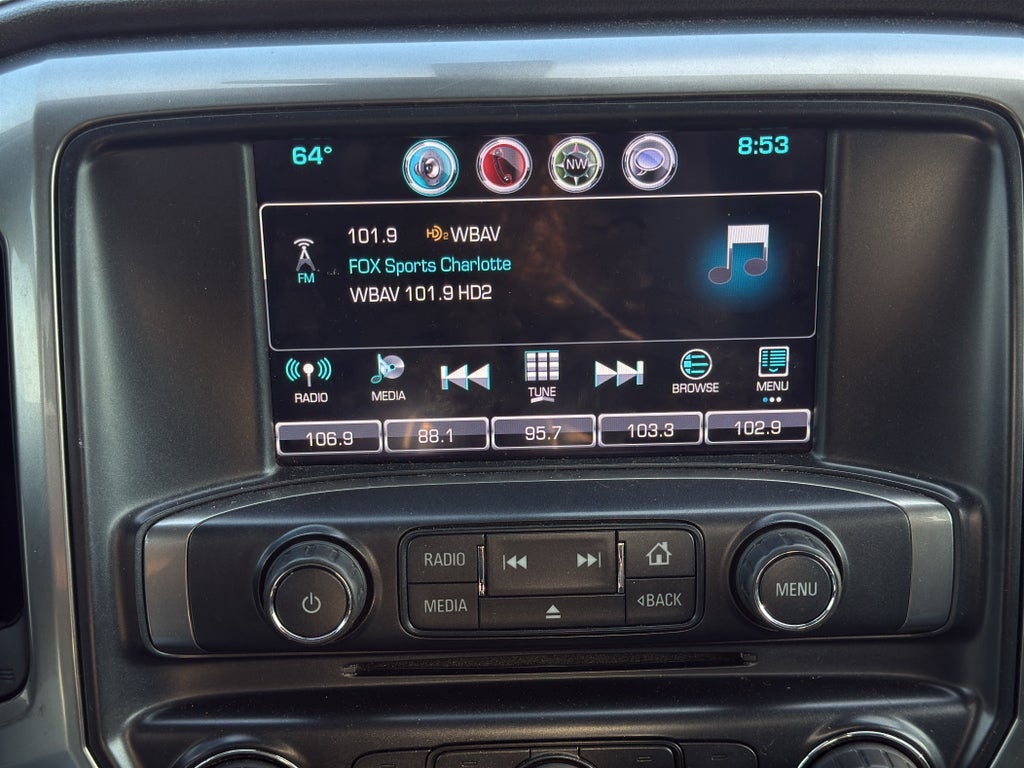

• Audio system, Chevrolet MyLink Radio with 8" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone. (Upgradeable to (IO6) Chevrolet MyLink 8" Diagonal Color Touch audio system with Navigation.)
• Single-slot CD/MP3 player (On Crew Cab replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered) (Replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• SiriusXM Satellite Radio is standard on nearly all 2016 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• Radio, HD
• 6-speaker audio system
• OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds, includes 3GB or 3 months OnStar Data Trial (whichever comes first) Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)

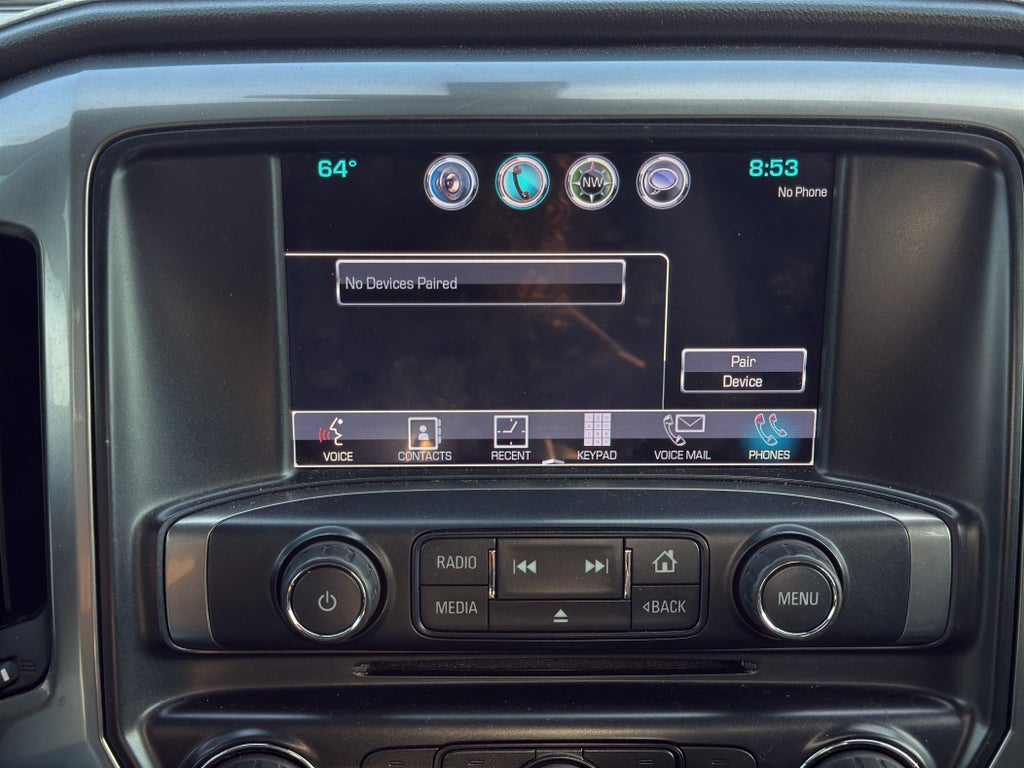

• Bluetooth for phone, personal cell phone connectivity to vehicle audio system

• Seats, front 40/20/40 leather-appointed split-bench, 3-passenger with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters, including driver/front passenger power recline, driver/front passenger power lumbar, 2-position driver memory and adjustable outboard head restraints. (Upgradeable to (AN3) front full-featured leather-appointed bucket seats.)
• Seat trim, Leather-appointed front seats
• Seating, heated driver and front passenger Only available on Crew Cab and Double Cab models.

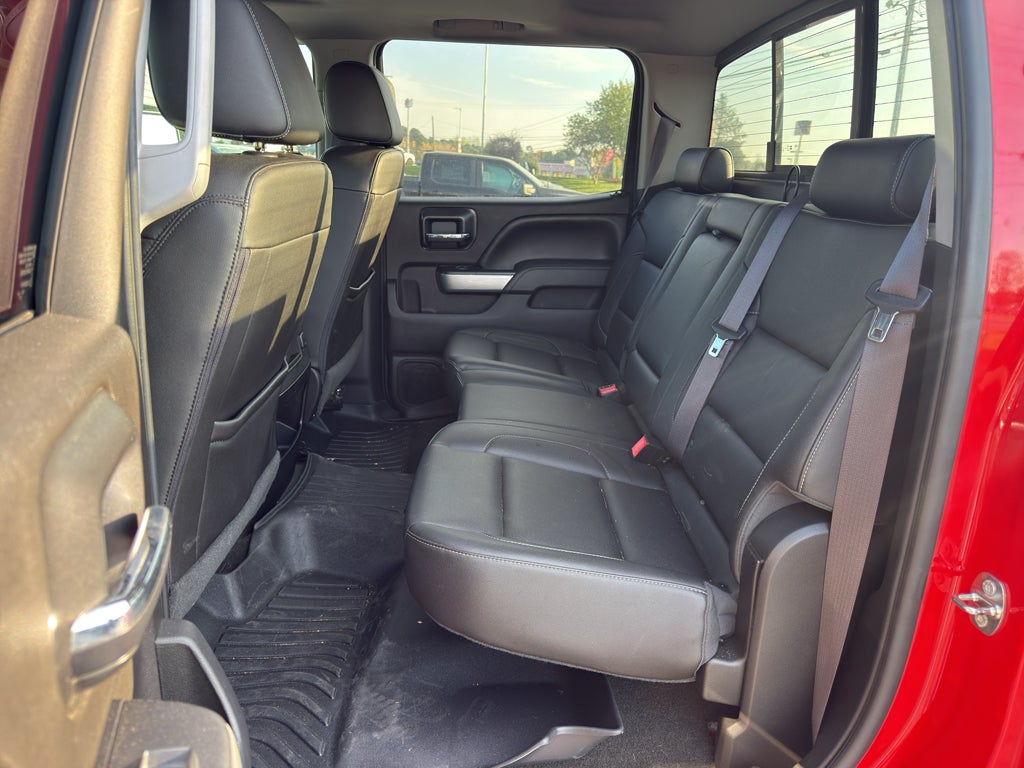

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Steering column, manual Tilt-Wheel and telescoping

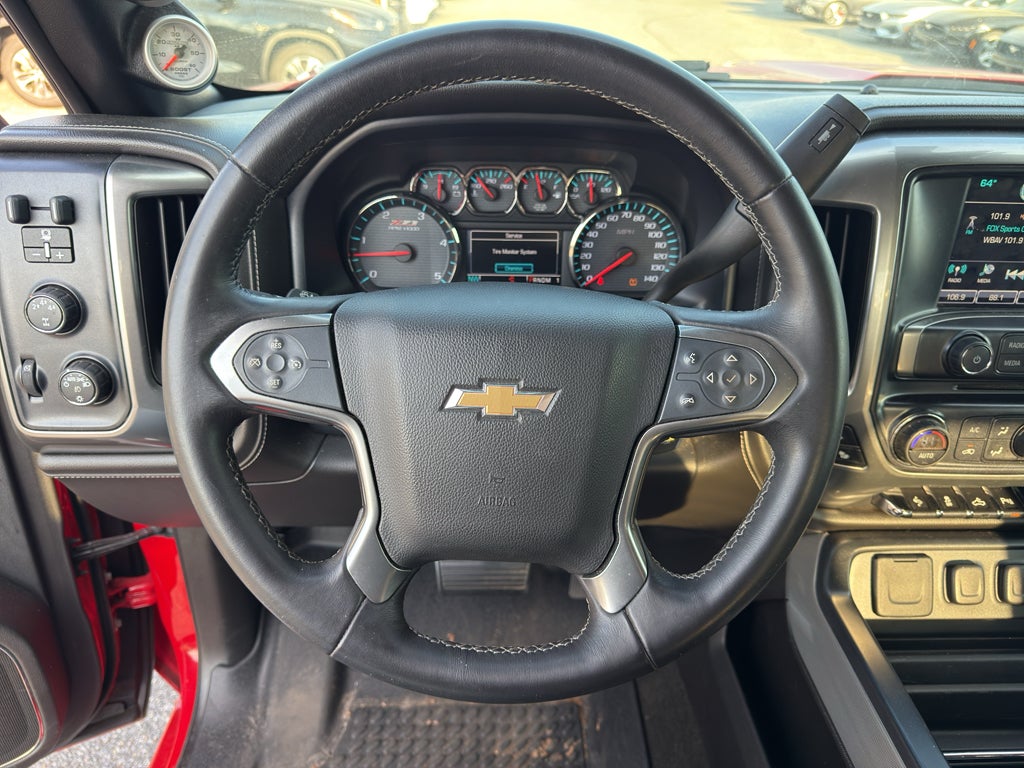

• Steering wheel, leather-wrapped with audio and cruise controls
• Steering wheel audio controls
• Floor covering, color-keyed carpeting (Double Cab and Crew Cabs include second row floor mats)
• Driver Information Center, 4.2-inch diagonal color display includes driver personalization, warning messages and vehicle information
• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Cruise control, steering wheel-mounted
• Theft-deterrent system, unauthorized entry
• Remote vehicle starter system
• Remote Keyless Entry
• Universal Home Remote (Removed when (TRW) provisions for roof mounted lamp or (VYU) Snow Plow Prep Package is ordered.)

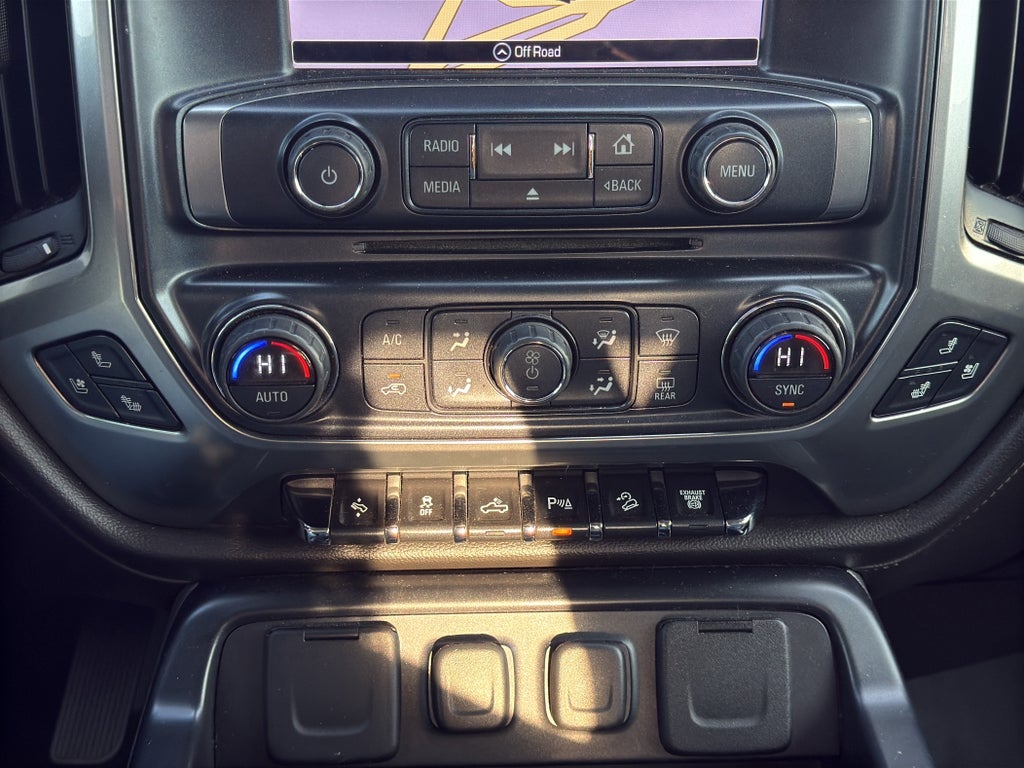

• Air conditioning, dual-zone automatic climate control Only available on Crew Cab and Double Cab models.
• Defogger, rear-window electric
• Window, power, rear sliding with rear defogger on Crew Cab or Double Cab models (If (TRW) Provision for cab roof-mounted lamp or (VYU) Snow Plow Prep Package is ordered (A48) will be deleted.)
• Power outlet, 110-volt AC
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger and driver on A-pillars

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags Crew Cab: single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (With (ZW9) pickup box delete on Double and Regular Cab you will get single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, Guidance Plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)

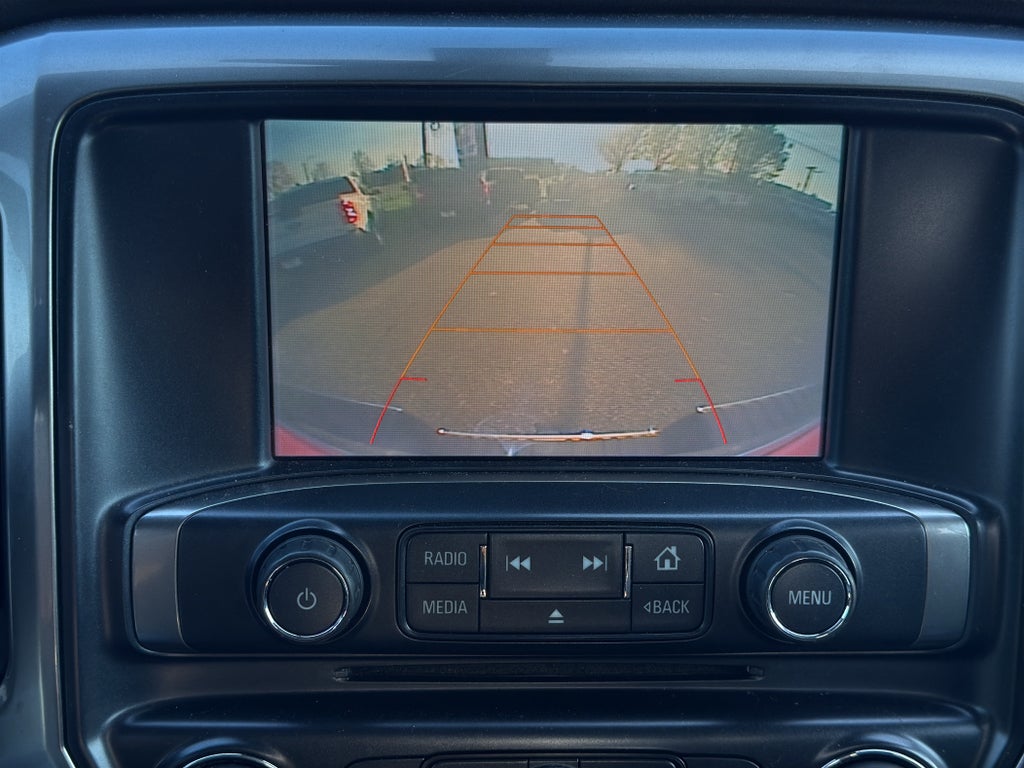

• Rear Vision Camera with dynamic guide lines (Removed when (ZW9) pickup box delete is ordered.) (Removed when (ZW9) pickup box delete.)
• Tire Pressure Monitoring System (does not apply to spare tire)

DURAMAX PLUS PACKAGE

• includes (LML) Duramax 6.6L Turbo Diesel V8 engine
• (MW7) Allison 1000 6-speed automatic transmission
• (GT4) 3.73 rear axle ratio
• (K05) engine block heater
• (K40) exhaust brake and (IO6) Chevrolet MyLink 8" Diagonal Color Touch audio system with Navigation Includes (PDF) LTZ Plus Package.

LTZ PLUS PACKAGE

• for Crew Cab and Double Cab
• includes (JF4) power adjustable pedals
• (UQA) Bose premium audio system and (UD5) Front and Rear Park Assist.

LTZ PREFERRED EQUIPMENT GROUP

• includes standard equipment

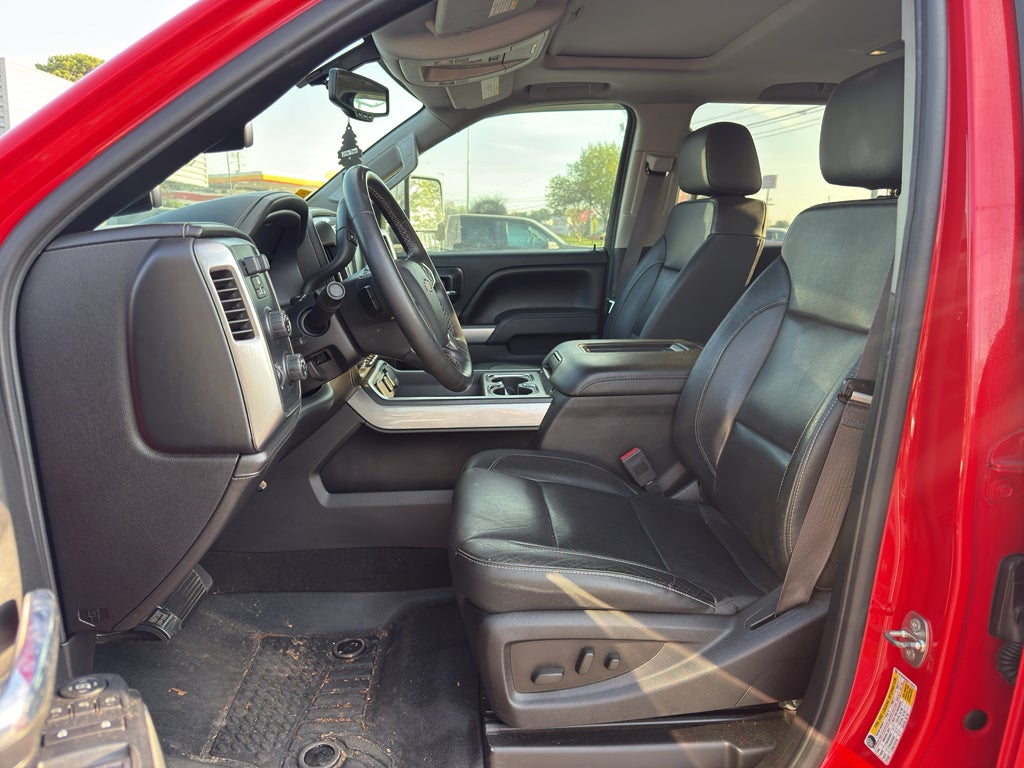

SEATS, FRONT FULL-FEATURE LEATHER-APPOINTED BUCKET

• with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters
• including 2-way power lumbar control
• 2-position driver memory
• adjustable head restraints
• (D07) floor console
• storage pockets and (K4C) wireless charging.

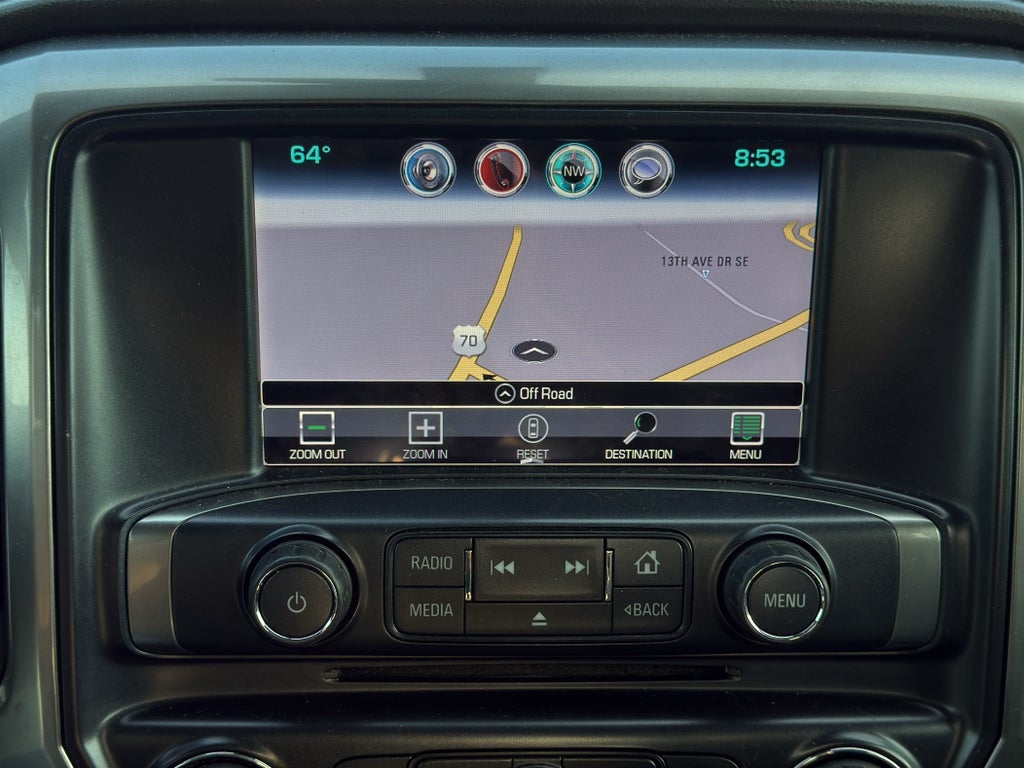

AUDIO SYSTEM, CHEVROLET MYLINK RADIO WITH NAVIGATION AND 8" DIAGONAL COLOR TOUCH-SCREEN, AM/FM STEREO

• with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone; featuring Apple CarPlay capability for compatible phone. (STD)

Z71 PACKAGE, OFF-ROAD

• includes twin tube Rancho brand shocks
• (JHD) Hill Descent Control
• (NZZ) underbody shields. Also includes brushed metal Z71 door sill plate
• unique Z71 gauge cluster
• unique finish interior trim plates
• unique lower bumper appearance
• unique grille design with Z71 badge and Z71 pickup box decals

LPO, ALL-WEATHER FLOOR MATS

• front and rear on Crew Cab and Double Cab

UNDERBODY SHIELD, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER

• includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member

• Duramax Plus Package
• LTZ Plus Package: BOSE Sound with 6 Speaker System; Ultrasonic Front and Rear Park Assist; Power-Adjustable Pedals For Accelerator and Brake
• Preferred Equipment Group 1LZ: EZ-Lift and Lower Tailgate; Chrome Door Handles; Rear Vision Camera with Dynamic Guide Lines; Rear 60/40 Folding Bench Seat (folds Up); Remote Vehicle Starter System; Power Sliding Rear Window with Defogger; Electric Rear-Window Defogger; Unauthorized EntryTheft Deterrent System; 4.2" Diagonal Color Display Driver Info Center; Heavy-Duty Trailering Equipment; 6-Speaker Audio System; 110-Volt AC Power Outlet; Front Halogen Fog Lamps; Remote Locking Tailgate; Universal Home Remote; Color-Keyed Carpeting Floor Covering; Power Windows with Driver Express Up and Down; OnStar 6 Month Guidance Plan; Remote Keyless Entry; Electronic Shift Transfer Case; Single Slot CD/MP3 Player; Deep-Tinted Glass; Dual-Zone Automatic Climate Control; Heated Power-Adjustable Outside Mirrors; Chrome Mirror Caps; HD Radio; Integrated Trailer Brake Controller; SiriusXM Satellite Radio; Full-Size Spare 18" X 8" Steel Wheel; Digital Steering Assist; Leather-Wrapped Steering Wheel; Manual Tilt-Wheel/telescoping Steering Column; Driver and Front Passenger Vanity Mirror Visors; OnStar 4G LTE Wi-Fi Hotspot; Auto Dimming Inside Rearview Mirror; Rear Wheelhouse Liners; Chrome Bodyside Moldings

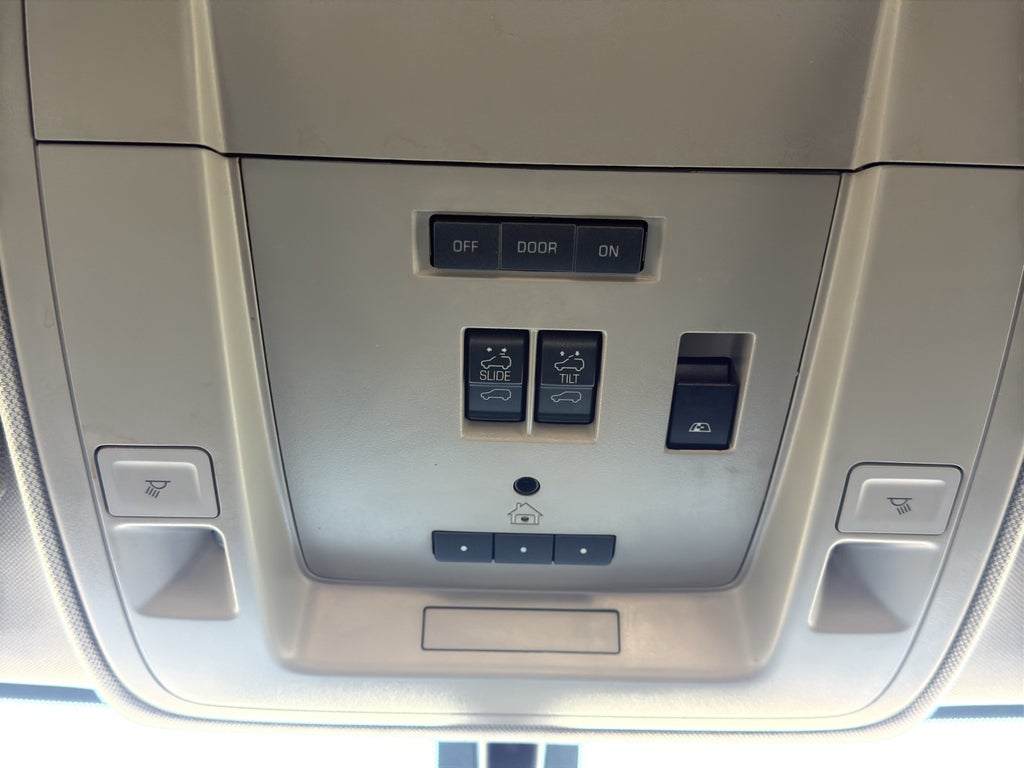

• Power Sunroof
• 6" Rectangular Chromed Assist Steps

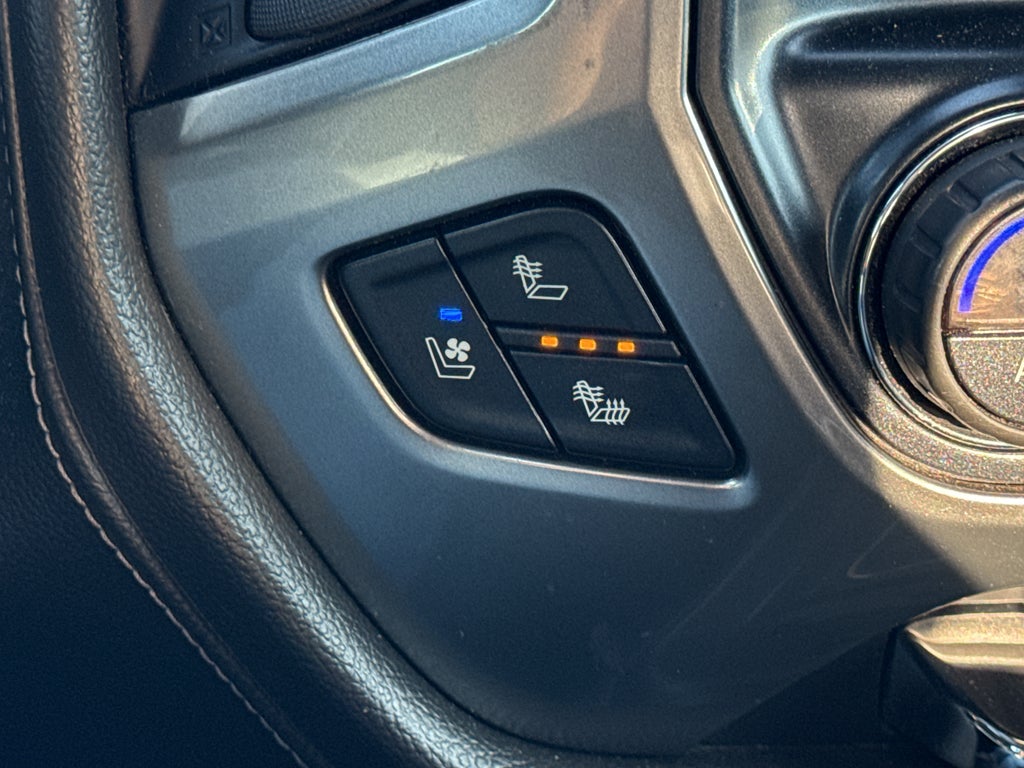

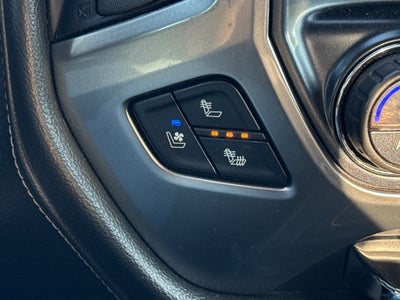

• Heated and Vented Front Seating
• Heated Front Full Feature Bucket Seats
• AM/FM Stereo with Chevrolet MyLink/navigation
• Off-Road Z71 Package
• 20" 5-Spoke Polished Aluminum Wheels
• Ultrasonic Front and Rear Park Assist
• LT265/60R20E AT BW Tires
• Front and Rear All-Weather Floor Mats
• Frame-Mounted Underbody Shield
• 3.73 Rear Axle Ratio
• Smoked Amber Roof Marker Lamps
• Camper and 5th Wheel Trailer Wiring Provisions
• Apple CarPlay smart device mirroring
• OnStar 4G LTE mobile hotspot internet access
• Integrated navigation system
• OnStar Guidance vehicle integrated emergency SOS system
• Bluetooth® handsfree wireless device connectivity
• Rear mounted camera
• Brake assist system
• Vehicle tracker with vehicle slowdown
• Immobilizer
• StabiliTrak w/Proactive Roll Avoidance electronic stability control system with anti-roll
• Hill descent control
• Hill start assist
• UltraSonic front and rear parking sensors
• Front fog lights
• Manual rear child safety door locks
• 6 airbags
• Cruise control with steering wheel mounted controls
• Keyfob remote start
• Front wireless smart device charging
• Smart device remote start
• Mechanical
• EZ Lift
• EZ Lower
• Heated driver and passenger side door mirrors
• Auto-dimming driver side mirror
• Power folding door mirrors

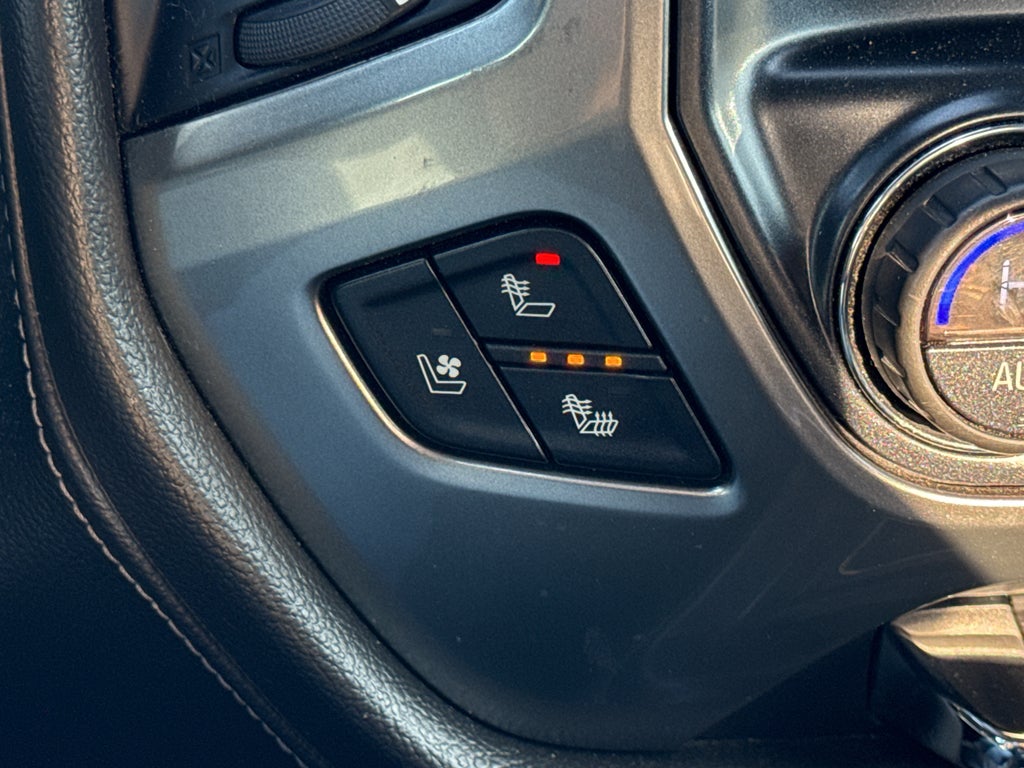

• Ventilated driver and front passenger seats
• Heated driver and front passenger seats
• Leather front seat upholstery
• Driver seat power reclining
• lumbar support
• cushion tilt
• fore/aft control and height adjustable control
• Dual-zone front climate control
• Automatic climate control
• Leather and metal-look steering wheel
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Power adjustable pedals
• Primary monitor touchscreen
• Bluetooth® wireless audio streaming
• Chevrolet MyLink external memory control
• Pandora internet radio capability

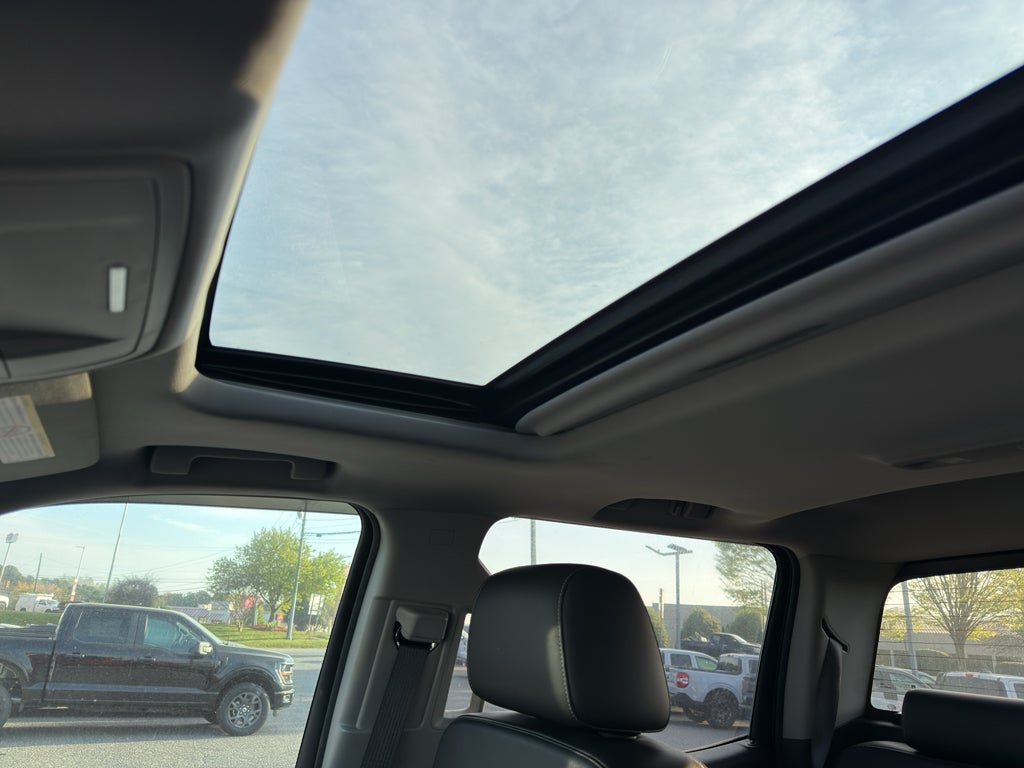

• First-row sliding and tilting glass sunroof with express open/close activation sunshade
• Trailer brake controller
• Trailer sway control
• Chrome hub wheel covers
• 20 x 9-inch front and rear polished aluminum wheels
• LT265/60SR20 AT BSW front and rear tires
• Part-time 4WD
• Duramax 6.6L V-8 diesel direct injection
• intercooled turbo
• diesel
• engine with 397HP
• Duramax 6.6L V-8
• Driver selectable steering effort

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3500
• Maximum Trailering Capacity (lbs): 13000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QFC
• Front Tire Order Code: QWF
• Rear Tire Order Code: QFC
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/60R20E
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/60R20E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 239.50
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.23
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.10
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.75
• Ground Clearance, Rear (in): 8.20

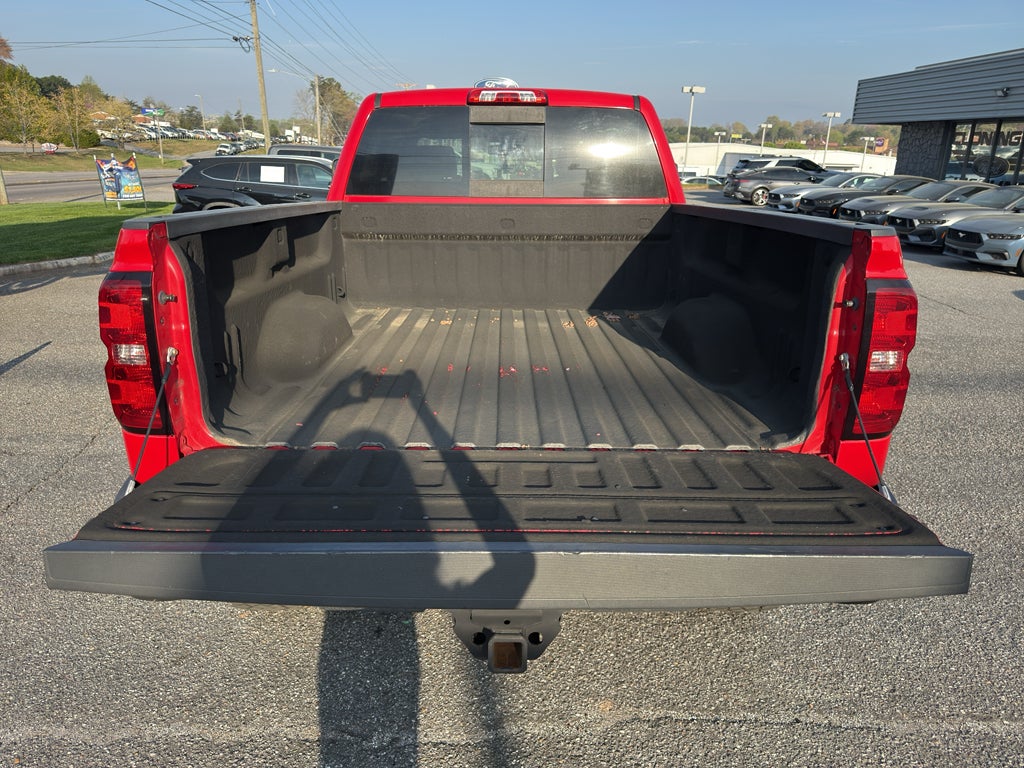

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.90
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.20
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

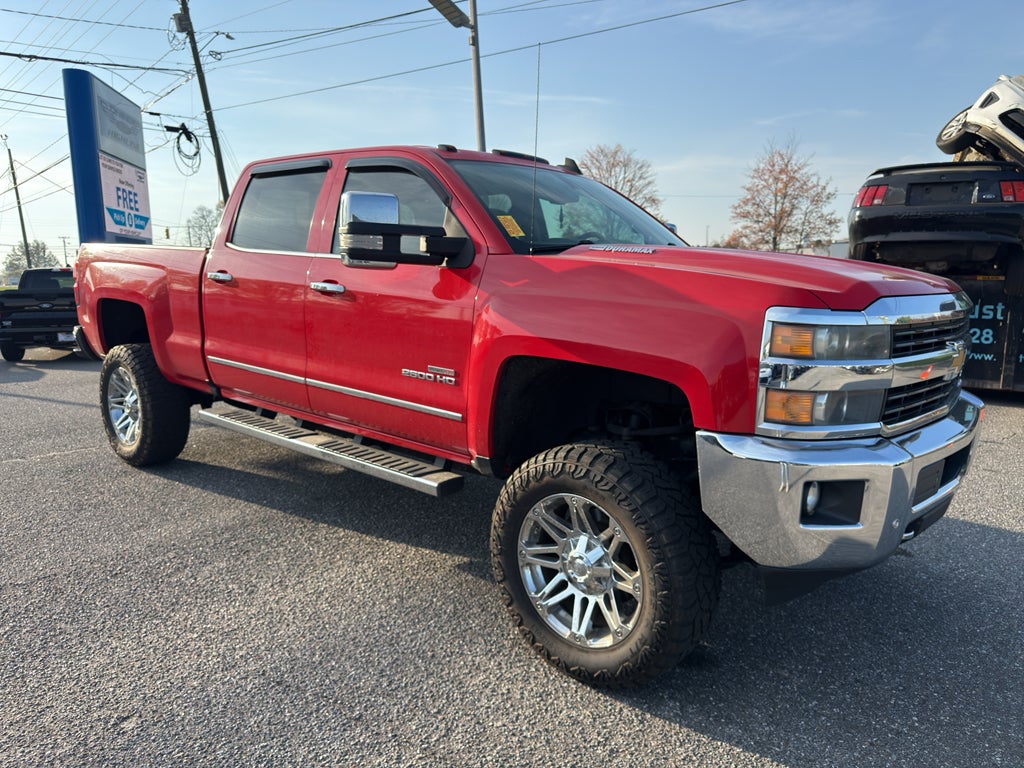

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
